Designing
Amruta Enterprises has a well qualified engineering team solely dedicated for designing transformers & other products. The knack of understanding the customer needs and designing appropriately is the reason for our flawless quality. Being a customized manufacturer, the customer requirements are taken into account & if some modifications are required, our engineers offer suggestions to them, thus giving them economical and best quality products.

Machinery & Other Manufacturing Facilities
Amruta Enterprises has highly superior & latest machinery essential for manufacturing the best quality transformers. As per the ISO 9001:2008 rules, a periodic inspection & repairing of these machines is performed without any lapses for the best outcome.

A list of the machinery & other equipments is given below.




Sr.no.     Description Qty

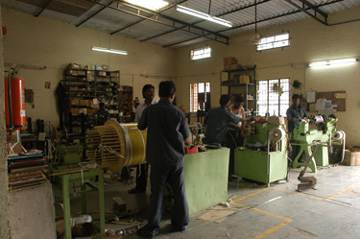

.     For Winding .
1)     Synthesis make fully automatic coil
    winding machine model S-10. This is for
    mass production of small control
    transformers rating from 1VA to 100VA		 1 No.
2)     Motorized coil winding M/c for
    transformers up to 5KVA & winding of
    round conductors upto 13 SWG.		 6 Nos.
3)     Heavy gauge winding M/c with 2HP
    motor, 70:1 ratio gear box suitable
    for  strip conductors up to 20x6mm.		 2 Nos.
4)     H.V. Coil Winding machine for cross
    over coils.		 2 Nos.
.     For Varnishing & Drying .

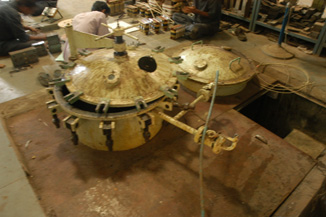

5)     Vacuum impregnation plant (Chamber
    size - 700 mm Æ x 1000mm depth).		 .

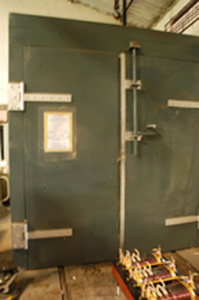

6)     Drying & Baking Oven ( 20 KW)
    chamber size 8’ x 8’ x7’		 1 No.
7)     Drying & Baking Oven L – 1000,
    D–750, H– 1200mm With 5 KW heaters.		 1 No.
.     Other random equipments & facilities .
8)     In-house small fabrication shop with
    cutting, drilling, welding facility.		 .
9)     In-house brazing facility. .
10)     Transformer Oil Filtering Machine
    (600 LPH) 		 1 No.
11)     Monorail trolley with 2 ton chain pulley/
    Hoist.		 1 No.
12)     Hydraulic floor crane (1 Ton) 1 No.
13)     Pallet truck 2 ton. 1 No.
14)     185 sq. mm Crimping Tool 1 No.
infra1
infra2
infra3
Testing Facility
Sr No.     Specification Qty.
1)     Digital Milliohm Meter
    Make: Motwani Model
    Range: 0- 2000
    Sr. No. LR – 2045.		 1 No.
2)     Digital Milliohm Meter
    Make: Motwani Model
    Range: 0- 2000
    Sr. No. LR – 2045.		 1 No.
3)     Digital Multimeter
    Make – Rishabh Model max 10
    Sr. No.- 057371 AE- 16.		 1No.
4)     Control Panel with
    Digital Ammeters/ Voltmeters
    Range 5 A/ 500 V AE- 6.		 1 No.
5)     H.V. Breakdown Tester
    Make- Precitech Instruments
    Range-0- 5 KV – 10 ma AE- 5.
 1 No.
6)     H.V. Breakdown Tester
    Make- Precitech Instrument
    Range- 0- 100 kv, 50 mA. 		1 No.
7)     DVDF Tester (Induced vol. Tester)
    Range o to 1000 V
    Max Current – 25A AE-13.		 1 No.
8)     3 Ph Dimmer start
    R- 415/ 470 V 40 A
    Make- AE.		 1 No.
9)     3 Ph Dimmer start
    R- 415/ 470V 28A
    Make- AE-8.		 1 No.
10)     Tong Tester
    Make- Fluke
    Range- 0- to 300A
    Sr. No. -322 AE-17.
 1 No.
11)     Tong Tester
    Make- Meco
    Range- 0- 1000 A
    Sr. N0. DT-2250		 1 No.
12)     Ratio Meter Make- Ambex Technologies
    Range- 0.8 to 2021
    Sr.No.- Ambex XR -120.		 2 Nos.
13)     1 ph Wattmeter
    Make- AE 0- 750 w
    Range- 5/10 A
    Vol- 150-300-600V Ace – 1 %
    Sr. No.156786 / 1 & 2. 		1 No.
14)     Megger 0- 5 kv , 10000 MΩ
    Make – Waco
    Sr. No. 241809.		 1 No.
15)     Megger-0- 1 kv 200MΩ
    Make – Shanthi
    Sr. NO. 46633 AE-03.		 1 No.
16)     Testing Panel 3 PH
    Digital Ammeters/ Voltmeters
    AE- 15		 1 No.
